Quick Information

  • Brand Name: BCAMCNC
  • Place of Origin: China
  • Model Number : BCM1325CE
  • :

Description

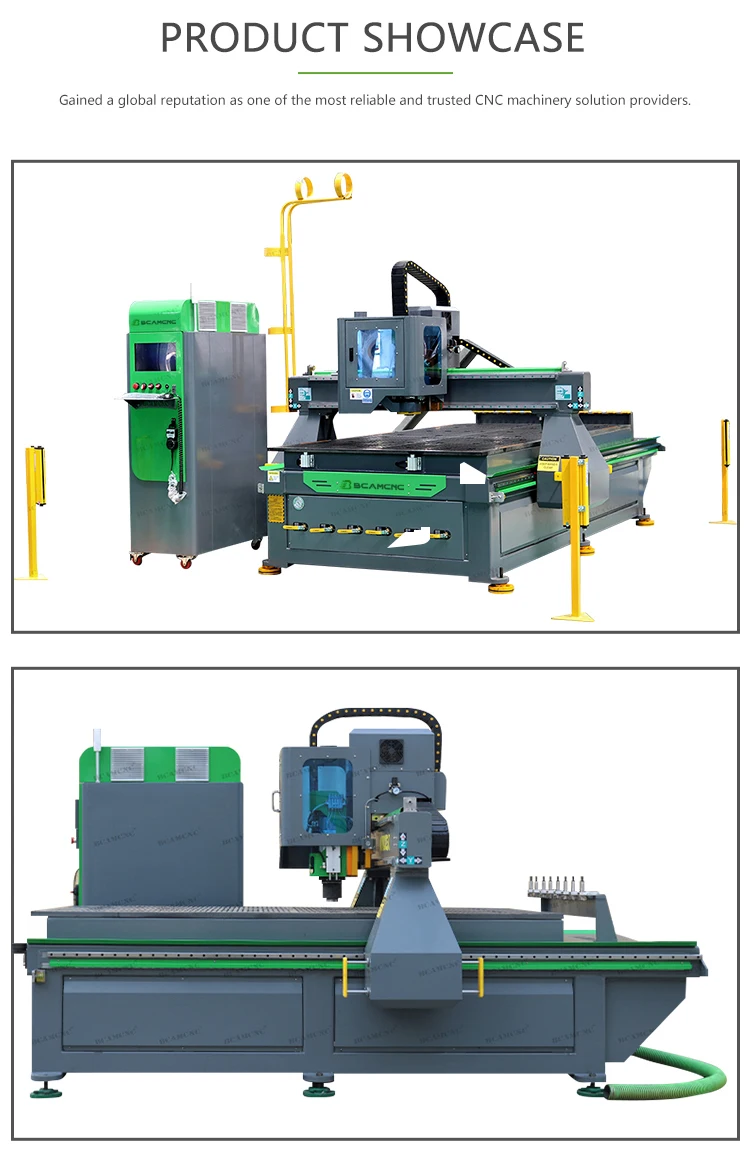

ATC machine details

 Configuration:

  • Working area: 1300*2500*200mm|4´*8´
  • CE standard
  • HQD 9.0KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30)
  • 10mm Heavy duty body
  • Active safety system
  • Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
  • 25mm Heavy-duty Hiwin HG Series linear bearing
  • Vacuum table+T-solts
  • Nc-studio controller(options: Syntec 6MB/21MA)
  • Japan Yaskawa servo motor and drivers system
  • Delta brand VFD-B variable frenquency drive
  • 8 Position Automatic Tool Changer (options: 10 ,12 position)
  • Tool Cone Holder-for east bit changing
  • Solid State limit switches
  • 3 Years Warranty

 Technical Parameters:

Parameters

Standard Specifications BCM1325C

X,Y,Z Working Area

1300*2500*200mm|4*8ft

Optional Working Area1300*1300*200mm|4*4ft
  1500*3000*200mm|5*10ft
  2000*3000*200mm|6*10ft
  2000*4000*200mm|6*13ft
  2000*6000*200mm|6*20ft

Spindle Power

9.0kw HQD air cooling  spindle

X,Y,Z Traveling Positioning Accuracy

±0.01/2000mm

Table Surface

Vacuum table+Intergrated T-solt table clamping System

X,Y,Z Rail and Trasmission

X Y axis gear transmission, Z axis TaiwanTBI Ball Screw

Max. Rapid Travel Rate

90m/min

Max. Working Speed

70m/min

Cutting thickness

According materials

Spindle Speed

6000-24000RPM

Drive Motors

Japanese Yaskawa Servo Drive System

Working Voltage

AC380v/50HZ/3 phase

Command Language

G code

Operating System

Nc-studio control system

Interface

USB

Software Compatibility

Option:Vcarve, Type3, Ucancam, Alphacam, Aspire, solidworks,etc.

Running Environment

Temperature: -20℃~45℃ Relative Humidity: 5%~75%



 Application industry:

1.The Advertising nidustry:
BCAM has developed a number of comprehensive CNC machining solutions and important productivity options for signmakers. The flexibility of a BCAM CNC router allows commercial sign fabricators to produce dimensional signage engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration. Additional productivity options include misters for wood, PVC, MDF, aluminum, aluminum composite panel and other non-ferrous metals.

2.Small-scale woodworking industry:
Making a cabinetmaker’s job easy. Our CNC routers have made the manufacturing of all kinds of doors(solid wood door, composite door), solid wood furniture, mahogany furniture, MDF paint door, cupboard door and window, bedside cabinet, folding screen etc. countertops, shelves, drawers and drawer fronts available to small, mid-size and large businesses alike. Operating a CNC machine allows cabinetmakers to use a manufacturing technique that improves production time, quality and consistency, as well as material yield, all utilizing a single machine and the right software system. Cabinetmaking involves all types of wood (both natural and processed), and sometimes some plastics as well.

3.Artwork industry
CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.
4.Soft metal processing:
CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic pproduct model, circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.











Q1. Delivery time of CNC router machine?
Aplus and S series standard size and configuration CNC router machine delivery time is 5 days, C,D,E series machine delivery time is 7 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.

 Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.

 Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.

 Q4. Can you please tell me if it’s possible to make a 1325C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.



Packaging & Delivery

  • Packing :1 box
  • Packaging Size : 3440 x 2300 x 2100
  • Package Weight : 1700
  • Delivery Lead Time : 7-15 days
  • Supply Ability : 50
